DE-9 Paddle
From IndividualComputers
(Redirected from DB9-Paddle)
Micromys V5 V5
... and analog Joystick / Touch Tablet ("Koala Pad")
Contents |
See also DE-9 Connector, DE-9 Joystick, DE-9 Mouse, DE-9 Lightpen
Pinout
at the computer, from outside (male)
at the cable, from outside (female)
Pinout at the solder side in the computer is equivalent to the pinout at the outside of the plug at the cable, pinout at the solder side of the plug at the cable is equivalent to the pinout at the outside of the computer.
The following table is still under construction:
| Pin | Apple 2 (*5) | Atari 800 Atari VCS (*1) |
VIC-20 C-64 C64GS (*2) |
Amiga (*2) |
MSX X68000 (*3) |
|---|---|---|---|---|---|
| 1 | /Button 1 | unused | unused | /Button 3 | /Up |
| 2 | VCC (+5V) | unused | unused | unused | /Down |
| 3 | GND | /Button A (Right) | /Button X | /Button 1 | unused |
| 4 | PDL2 (Joystick-2 X-axis) (*4) | /Button B (Left) | /Button Y | /Button 2 | unused |
| 5 | PDL0 (Joystick-1 X-axis) | Paddle B (Left) | POTY | POTX | VCC |
| 6 | /Button 2 (*4) | unused | unused | unused | /Button 1 |
| 7 | /Button 0 | VCC (+5V) | VCC (+5V) | VCC (+5V) | unused |
| 8 | PDL1 (Joystick-1 Y-axis) | GND | GND | GND | Strobe OUT |
| 9 | PDL3 (Joystick-2 Y-axis) (*4) | Paddle A (Right) | POTX | POTY | GND |
(*5) 150kOhm Potentiometer (linear) connected from PDL line to VCC
(*1) 1MOhm Potentiometer (linear) connected from Paddle line to VCC
(*2) 470kOhm Potentiometer (linear) connected from POT line to VCC

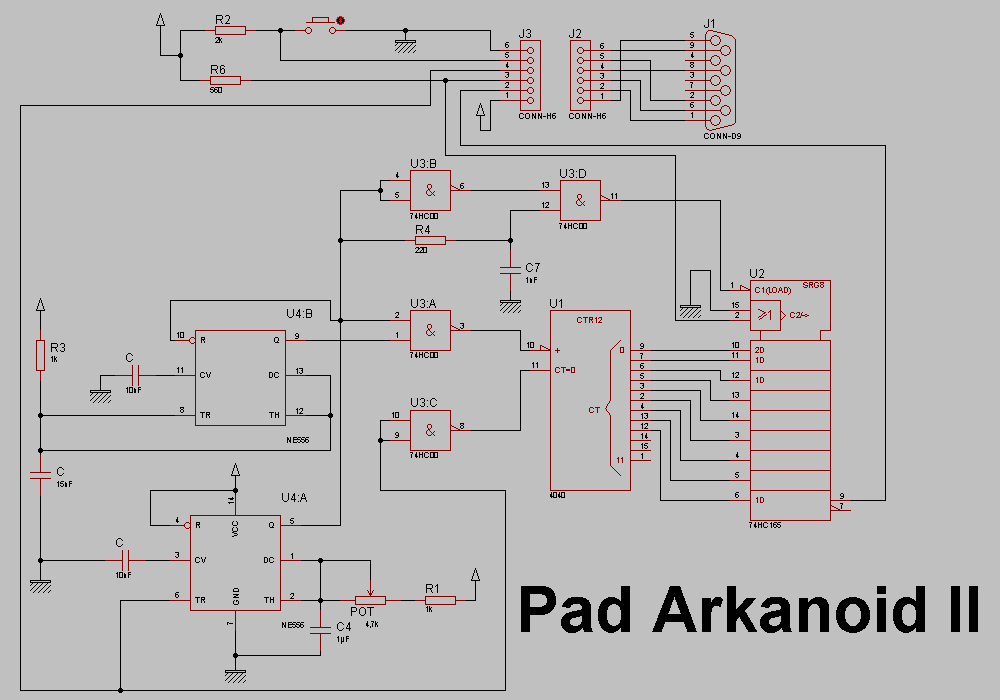

(*3) MSX has no analog inputs. Pinout shown is the one used by the "Arkanoid II paddle", which emulates joystick,
(*4) These functions are not available on the Apple //c or Apple IIc+.
Note: The Amstrad CPC, Atari ST, Sega Mastersystem, Sega Megadrive/Genesis, Sega Saturn have no analog paddle input.
Games that support Paddles
Atari 2600
- 2006 AtariAge Holiday Cart
- Action Force
- Astroblast
- Bachelor Party/Gigolo Playaround
- Bachelorette Party/Burning Desire
- Backgammon
- Beat 'Em & Eat 'Em/Lady in Wading
- Birthday Mania
- Blackjack
- Breakaway IV
- Breakout
- Bugs Data Age
- Bumper Bash
- Canyon Bomber
- Casino
- Circus
- Circus Atari
- Demons to Diamonds
- Dukes of Hazzard version 2
- Eggomania
- Encounter at L5
- Fireball
- G.I. Joe - Cobra Strike
- Guardian
- Kaboom!
- Marble Craze
- Medieval Mayhem
- Mondo Pong
- Night Driver
- Party Mix
- Picnic
- Piece o' Cake
- Poker Plus
- Pong Sports
- SCSIcide
- Secret Agent
- Solar Storm
- Speedway II
- Star Wars: Jedi Arena
- Steeplechase
- Street Racer
- Stunt Cycle
- Super Breakout
- Tac-Scan
- The Music Machine
- Video Olympics
- Vong
- Warlords
- Warplock
- SWOOPS!
- Testcart
- Ultra SCSIcide
Atari 800
- Anleit (Bridman) demo
- Arkanoid (Paddle 1+2, Port 1)
- Arkanoid 2, Arkanoid 3 (made with Arkanoid Construction Kit) (Paddle 1+2, Port 1)
- Asteraxis 2k (Paddle 1+2, Port 1) Note: both paddles are used together
- Avalanche (Atari)
- Balloon Game
- Bird-Man
- Block Buster
- Breakwall
- Burgers ! (Paddle 1, Port 1)
- Bust Out
- Cascade
- Castle Crisis (Paddle 1+2, Port 1+2)
- Chess 7.0
- Chicken (Synapse Software) (Paddle 1, Port 1)
- Chiseler (Paddle 1, Port 1)
- Clowns & Ballons (Press P to toggle Joystick / Paddles)
- David's Midnight Magic
- Diamond Drop
- Dragonriders of Pern
- Downhill
- Flickin' Footballs
- Frogs and Flies
- Horse 2.0
- Juggler (Needs 800/OS-A Translator) (Press Control P to activate paddles mode after game starts)
- JunkYard Racing
- Kaboom (Paddle 1, Port 1)
- Laser Gate
- Livewire (Paddle 1, Port 1)
- Livewire 2
- Lunar Lander (Paddle 1+2, Port 1+2)
- Lunar Landing
- Midnight Strip
- M.U.L.E.
- Night Driver (?)
- Nineball (Paddle 1, Port 1)
- One on One
- Pad Beta
- Padland
- Paratroop
- Plattermania (Load with OS-B)
- Pong ! (Bob Ayik) (Paddle 1+2, Port 1)
- Pong (Gary Domrow) (Paddle 1+2, Port 1)
- Pong 2 (Paddle 1+2, Port 1)
- Pool 1.5
- Popcorn ! (?)
- Prison Ball (Paddle 1+2, Port 1)
- Safe Cracker
- Space Arena (Paddle 1+2, Port 1 and Paddle 1+2, Port 2)
- Space Bombs
- Space Eggs (Paddle 1, Port 1)
- Spy's Demise (Paddle 1, Port 1)
- StarShot
- Super Ball, Super Ball 2, Super Ball 3, Super Ball 4 (CSM) (Paddle 1+2, Port 1)
- Super Ball editor (CSM) (?)
- Super Breakout (Paddle 1, Port 1)
- Super Clown
- Superski (Paddle 1, Port 1)
- Tilter (Paddle 1+2 at once, Port 1)
- Warlords (Paddle 1, Port 1)
- Wavy Navy (Paddle 1, Port 1)
- Wild West
- Worms
C-64
Note: For some reason a couple games appear in various lists that do not actually support paddles - one reason could be that you can play them with just joystick left / right (eg Kickman), which corrosponds to the two buttons at a paddle pair. Sometimes also different versions/releases of the same game existed. Please let us know if you spot such mistakes.
- Alien Attack (Paddle 1, Port 2)
- Arkanoid (Paddle 1, Port 1)
- Ball Donk III (Paddle 1, Port 1)
- BlockHead (Paddle 1, Port 1)
- Break64 (Paddle 1, Port 1)
- Breakout (Paddle 1, Port 1)
- Brickwall (Paddle 1, Port 2)
- Clowns (Commodore) (Paddle 1, Port 1)
- Juggler Paddle (Trifox, Rio, Mombasajoe) (Paddle 1, Port 1)
- Jumping Gusten (Paddle 2, Port 1)
- Kickman (?)
- Krakout (?)
- Le Mans (Commodore) (Paddle 1, Port 1)
- Lightsaver (Paddle 1, Port 1)
- Monster Buster (P1x3l.net) (Paddle 1, Port 2)
- Moving Target (Paddle 1, Port 2)
- Night Driver (aka Road Race) (Commodore) (Paddle 1, Port 1)
- Omega Battle (Commodore) (Paddle 1, Port 1)
- Omega Race (Commodore) (Paddle 1, Port 1)
- Omega Race II (Paddle 1, Port 1)
- Paddle Pong (Kribust) (Paddle 1+2, Port 1)
- Panic Analogue (Goin' Sideways) (Paddle 1, Port 1)
- Phong! (Instinct) (Paddle 1+2, Port 1+2)
- Pinball Spectacular (Commodore) (Paddle 1, Port 1)
- Pong (Paddle 1+2, Port 1)
- Puzzle Bobble (by JHB)
- Rabble (Paddle 2, Port 1)
- Rack'em Up (?)
- REVS (Paddle 2, Port 1 - Press CBM+F3 for paddle+keyboard, CBM+F5 for paddle+joystick)
- Saucer Duel (Paddle 1+2, Port 2)
- Saucer Quest
- Sea Wolf (Cartridge) (Paddle 1+2, port 1)
- Sea Wolf II by Oziphantom
- Sexy Breakout (aka Harem) (Paddle 1, Port 1 - press F1)
- Space Duel (Paddle 1+2, Port 1)
- Space Lords - Andromeda (P1x3l.net) (Paddle 1+2, Port 1+2 - hold button and move around to select)
- Space Lords - Andromeda II (P1x3l.net) (Paddle 1+2, Port 1+2 - hold button and move around to select)
- Space Lords - Centaurus (P1x3l.net) (Paddle 1+2, Port 1+2 - hold button and move around to select)
- Spy's Demise (?)
- Star Post (?)
- Strabimus II (Paddle 2, Port 1)
- Super Smash (Commodore) (Paddle 1+2, Port 2)
- Way Out (Sirius) (Paddle 1, Port 2)
VIC20
- Alien Soccer (Rabbit) (Paddle 2)
- Arukanoido (Pixel) (WIP) (?)
- Break-Out (Robert Hurst) (Paddle 1)
- Clowns (Paddle 1+2)
- Omega Race (Paddle 1)
- Pinball Spectacular (Commodore) (Paddle 1+2)
- Pong (Nino Porcino) (Paddle 1+2)
- Sea Wolf (Paddle 1+2)
- Skibbereen (Paddle 1+2)
- Space Snake (Paddle 1)
- Star Post (Paddle 1)
- Super Smash (Paddle 1+2)
- The Sky is Falling (Paddle 1+2)
MSX
- Arkanoid II
Games that support analog Joystick
Amiga
- A-10 Tank Killer Version 1.5 (Sierra/Dynamix)
- Air Warrior 2.9c
- AV8B Harrier Assault
- Birds of Prey (Electronic Arts)
- Descent: Freespace- The Great War
- F16 Combat Pilot
- F-15 Strike Eagle II (MicroProse)
- F-19 Stealth Fighter (MicroProse)
- FA-18 Interceptor (Electronic Arts)
- Falcon
- Fighter Duel (Jaeger Software)
- Fighter Duel Pro (Jaeger Software)
- Fighter Duel Pro 2 (Jaeger Software)
- Flight of the Intruder (Spectrum Holobyte)
- Flight Simulator II, Ver. 1.1 (SubLogic)
- Genie Air Warrior (Kesmai)
- Gunship 2000 (MicroProse)
- Jet Pilot
- Knights of the Sky (MicroProse)
- Formula One Grand Prix (MicroProse)
- MiG-29 Fulcrum (Domark)
- MiG-29M Super Fulcrum
- Overlord
- ProFlight (Oregon Software/HiSoft)
- Reach for the Skies
- Red Baron, Ver. 1.01 (Sierra/Dynamix)
- Tornado OCS/ECS/AGA
- virtual karting
- virtual karting 2
- World Circuit (MicroProse)
Applications that support Touch Tablet
C-64
- Finger Painter (comes with a pad that is Koalapad compatible)
- Koalapainter (Koalapad)
Atari 8bit
- Koalapainter (Koalapad)
- Atari Artist (Touch Tablet)
Links
- Paddle on c64-wiki
- Paddle on c64-wiki (german)
- Atari 2600 Accessories Schematic
- MSX Arkanoid 2 paddle Schematic
- Paddle on wikipedia
- Amiga Controlport Pinout, Paddle Info
- Paddle Battle - comparison of the classic Commodore VIC20, C64 and Atari paddles
- Atari Interface at Deskthority wiki has another large table
